pcd cutting tool blanks

PCD cutting tool blanks are compound super-hard material of polycrystalline diamond layers and WC sintered under ultrahigh pressure and high temperature. It has the hardness and wear resistance of natural diamond and toughness of hard alloy. The surface of tools and processing work pieces made of such materials is highly polished and grinding processing operation is not required. Cutters have a long lifetime and high efficiency. It is an ideal and new-type tool material and can be widely applied in processing nonferrous metals and its alloy and non-metallic materials.

Standard models of PCD cutting tool blanks

	Product number	ΦD (mm)	T (mm)
	R1003	10.00 ±0.03	3.53±0.1
	R1301	13.30±0.03	1.60±0.1
	R1303	13.30 ±0.03	3.53±0.1
	R1601	16.00 ±0.03	1.60±0.1
	R1603	16.00 ±0.03	3.53±0.1
	R1901	19.05 ±0.05	1.60±0.1
	R1903	19.05 ±0.05	3.53±0.1

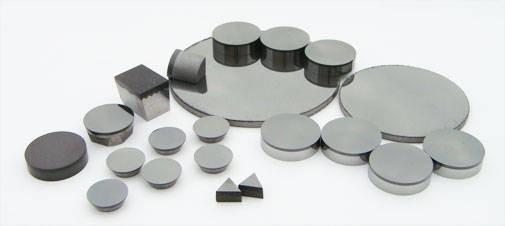

pcd cutting tool blanks Images
